Cuscinetti obliqui a sfere a una corona Produttori

Cuscinetti obliqui a sfere a una corona

: http://magnet-materials.it/permanent-magnet-bearings.html

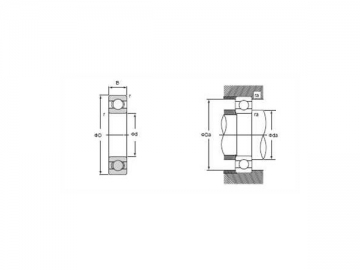

Designazione Cuscinetto	Dimensioni					Livello carico base				Velocità massima		Posizione Punto Lavoro	Spalla Dimensioni			Massa
Designazione Cuscinetto	(mm)					Senza gabbia di taglio (kN)		Con gabbia a pressione (kN)		(rpm)		(mm)	(mm)			(kg)
	d	D	B	r	r1	Cr	Cor	Cr	Cor	Grasso	Olio	a	da	Da	ra	Approx
	d	D	B	(min.)	(min.)	Cr	Cor	Cr	Cor	Grasso	Olio	a	(min.)	(max.)	(max.)	Approx
7000	10	26	8	0.3	0.15	5	2.35	0	0	34000	42000	9.1	12.5	23.5	0.3	0.021
7000B	10	26	8	0.3	0.15	4.65	2.15	0	0	25000	33000	11.6	12.5	23.5	0.3	0.021
7000C	10	26	8	0.3	0.15	5.3	2.45	0	0	47000	62000	6.4	12.5	23.5	0.3	0.021
7001	12	28	8	0.3	0.15	5.4	2.75	0	0	29000	37000	9.9	14.5	25.5	0.3	0.024
7001B	12	28	8	0.3	0.15	4.95	2.5	0	0	22000	29000	12.6	14.5	25.5	0.3	0.024
7001C	12	28	8	0.3	0.15	5.8	2.95	0	0	40000	54000	6.7	14.5	25.5	0.3	0.024
7002	15	32	9	0.3	0.15	6.1	3.45	0	0	26000	32000	11.3	17.5	29.5	0.3	0.035
7002B	15	32	9	0.3	0.15	5.55	3.15	0	0	19000	25000	14.6	17.5	29.5	0.3	0.035
7002C	15	32	9	0.3	0.15	6.6	3.7	0	0	35000	47000	7.6	17.5	29.5	0.3	0.035
7003	17	35	10	0.3	0.15	6.75	4.15	0	0	23000	28000	12.7	19.5	32.5	0.3	0.045
7003B	17	35	10	0.3	0.15	6.1	3.75	0	0	17000	23000	16.1	19.5	32.5	0.3	0.045
7003C	17	35	10	0.3	0.15	7.3	4.45	0	0	31000	41000	8.6	19.5	32.5	0.3	0.045
7004	20	42	12	0.6	0.3	10.3	6.1	0	0	19000	24000	15.1	24.5	47.5	0.6	0.079
7004B	20	42	12	0.6	0.3	9.35	5.55	0	0	14000	19000	19.2	24.5	37.5	0.6	0.079
7004C	20	42	12	0.6	0.3	11.1	6.6	0	0	26000	35000	10.2	24.5	37.5	0.6	0.079
7005	25	47	12	0.6	0.3	11.3	7.4	0	0	17000	21000	16.4	29.5	42.5	0.6	0.091
7005B	25	47	12	0.6	0.3	10.2	6.7	0	0	12000	17000	21.1	29.5	42.5	0.6	0.091
7005C	25	47	12	0.6	0.3	12.3	9	0	0	23000	30000	10.8	29.5	42.5	0.6	0.091
7006	30	55	13	1	0.6	14.5	10.1	0	0	14000	18000	18.8	35.5	49.5	1	0.133
7006B	30	55	13	1	0.6	13.1	9.2	0	0	11000	14000	24.3	35.5	49.5	1	0.133
7006C	30	55	13	1	0.6	15.8	11	0	0	20000	26000	12.2	35.5	49.5	1	0.133
7007	35	62	14	1	0.6	17.5	12.6	0	0	12000	15000	21.2	40.5	56.5	1	0.17
7007B	35	62	14	1	0.6	15.8	11.4	0	0	9200	12000	27.6	40.5	56.5	1	0.17
7007C	35	62	14	1	0.6	19.1	13.7	0	0	17000	22000	13.5	40.5	56.5	1	0.17
7008	40	68	15	1	0.6	18.7	14.6	0	0	11000	14000	23.2	45.5	62.5	1	0.21
7008B	40	68	15	1	0.6	16.8	13.2	0	0	8300	11000	30.2	45.5	62.5	1	0.21
7008C	40	68	15	1	0.6	20.5	15.9	0	0	15000	20000	14.8	45.5	62.5	1	0.21
7009	45	75	16	1	0.6	22.2	17.7	0	0	10000	12000	25.3	50.5	69.5	1	0.26
7009B	45	75	16	1	0.6	20	16	0	0	7500	10000	33.2	50.5	69.5	1	0.26
7009C	45	75	16	1	0.6	24.4	19.3	0	0	14000	18000	16	50.5	69.5	1	0.26
7010	50	80	16	1	0.6	23.6	20.1	0	0	9200	11000	26.9	55.5	74.5	1	0.29
7010B	50	80	16	1	0.6	21.2	18.1	0	0	6900	9200	35.3	55.5	74.5	1	0.29
7010C	50	80	16	1	0.6	26	21.9	0	0	13000	17000	16.8	55.5	74.5	1	0.29
