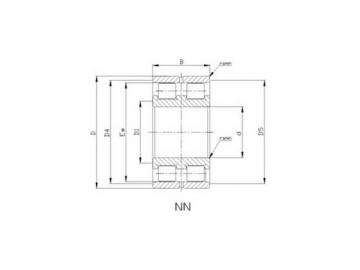

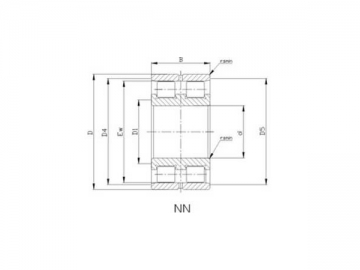

Cuscinetti a due corone di rulli NN

: http://magnet-materials.it/permanent-magnet-bearings.html

Codice cuscinetto	d	D	B	rsmin	E	Mass	CrKN	CorKN	Velocità	Getto	D1min	D4max	D5min
Codice cuscinetto	d	D	B	rsmin	E	Mass	CrKN	CorKN	massima	olio	D1min	D4max	D5min
NN3006ASK	30	55	19	1	48.5	0.191	29	34	16000	19000	35	50	49
NN3007ASK	35	62	20	1	55	0.249	35.5	44	14000	17000	40	57	56
NN3008ASK	40	68	21	1	61	0.303	45	58.5	12000	15000	45	63	62
NN3009ASK	45	75	23	1	67.5	0.393	54	72	11000	14000	50	70	69
NN3010ASK	50	80	23	1	72.5	0.426	57	80	10000	13000	55	75	74
NN3011ASK	55	90	26	1.1	81	0.63	57	80	9000	11000	61	84	82
NN3012ASK	60	95	26	1.1	86.1	0.674	75	110	8500	10000	66	89	87
NN3013ASK	65	100	26	1.1	91	0.715	76.5	116	8000	9500	71	94	92
NN3014ASK	70	110	30	1.1	100	1.04	98	150	7000	8500	76	104	702
NN3015ASK	75	115	30	1.1	105	1.09	100	156	6700	8000	81	109	107
NN3016ASK	80	125	34	1.1	113	1.51	120	186	6300	7500	86	119	115
NN3017ASK	85	130	34	1.1	118	1.58	125	200	6000	7000	91	124	120
NN3018ASK	90	140	37	1.5	127	2.05	140	224	5600	6700	98	132	129
NN3019ASK	95	145	37	1.5	132	2.14	143	236	5300	6300	103	137	134
NN3020ASK	100	150	37	1.5	137	2.23	146	245	5300	6300	108	142	139
NN3021ASK	105	160	41	2	146	2.84	190	310	4800	5600	114	151	148
NN3022ASK	110	170	45	2	155	3.61	220	360	4500	5300	119	161	157
NN3024ASK	120	180	46	2	165	3.94	232	390	4300	5000	129	171	167
NN3026ASK	130	200	52	2	182	5.79	290	500	3800	4500	139	191	184
NN3028ASK	140	210	53	2	192	6.22	300	520	3600	4300	149	201	194
NN3030ASK	150	225	56	2.1	206	7.58	335	585	3400	4000	160	215	208
NN3032ASK	160	240	60	2.1	219	9.23	375	670	3200	3800	170	230	222
NN3034ASK	170	260	67	2.1	236	12.5	450	800	3000	3600	180	250	239
NN3036ASK	180	280	74	2.1	255	16.4	570	1000	2800	3400	190	270	258
NN3038ASK	190	290	75	2.1	265	17.3	585	1040	2600	3200	200	280	268
NN3040ASK	200	310	82	2.1	282	22.2	655	1200	2400	3000	210	300	285
NN3044ASK	220	340	90	3	310	29.1	800	1460	2200	2800	232	328	313
NN3048ASK	240	360	92	3	330	31.6	850	1560	2000	2600	252	348	334
NN3052ASK	260	400	104	4	364	46.2	1060	2000	1900	2400	275	385	368
NN3056ASK	280	420	106	4	384	49.7	1080	2080	1800	2200	295	405	388
NN3060ASK	300	460	118	4	418	68.8	1270	2400	1600	1900	315	445	422
NN3064ASK	320	480	121	4	438	74.2	1320	2600	1600	1900	335	465	442
NN3068ASK	340	520	133	5	473	99.3	1630	3250	1400	1700	357	503	477
NN3072ASK	360	540	134	5	493	104	1660	3350	1400	1700	377	523	497
NN3076ASK	380	560	135	5	513	110	1700	3450	1300	1600	397	543	517
NN3080ASK	400	600	148	5	549	143	2160	4500	1200	1500	417	583	553
