Cuscinetti orientabili a sfere tipo aperto Produttori

Cuscinetti orientabili a sfere tipo aperto

: http://magnet-materials.it/permanent-magnet-bearings.html

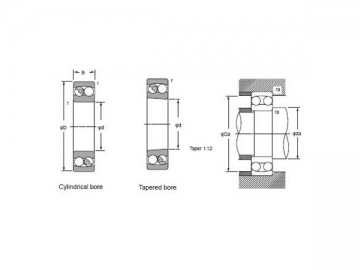

Cuscinetto		Dimensioni (mm)				Livello carico base (kN)		Velocità massima (rpm)		Dimensioni spalla (mm)			Costante	Coefficiente carico assiale			Massa (kg)
Cuscinetto		Dimensioni (mm)				Livello carico base (kN)		Velocità massima (rpm)		Dimensioni spalla (mm)			Costante	Coefficiente carico assiale			Approx
Foro	Foro	d	D	B	r	C r	C or	Grasso	Olio	d a	D a	r a	e	Y 1	Y 2	Y 0	Foro	Foro
Cilindrico	Rastremato	d	D	B	(min.)	C r	C or	Grasso	Olio	(min.)	(max.)	(max.)	e	Y 1	Y 2	Y 0	Cilindrico	Rastremato
108	0	8	22	7	0.3	2.6	0.56	26000	33000	10	20	0.3	0.35	1.82	2.82	1.91	0.014	0
1200	0	10	30	9	0.6	5.5	1.2	23000	28000	14	26	0.6	0.33	1.92	2.97	2.01	0.034	0
1201	0	12	32	10	0.6	5.6	1.25	21000	26000	16	28	0.6	0.33	1.89	2.93	1.98	0.04	0
1202	0	15	35	11	0.6	7.45	1.75	18000	22000	19	31	0.6	0.33	1.9	2.95	2	0.049	0
1203	0	17	40	12	0.6	7.9	2	16000	20000	21	36	0.6	0.31	2.03	3.14	2.12	0.073	0
1204	1204K	20	47	14	1	9.9	2.6	14000	17000	25	42	1	0.29	2.16	3.35	2.27	0.12	0.118
1205	1205K	25	52	15	1	12.1	3.3	12000	14000	30	47	1	0.28	2.28	3.52	2.39	0.141	0.138
1206	1206K	30	62	16	1	15.6	4.65	9900	12000	35	57	1	0.25	2.55	3.94	2.67	0.22	0.216
1207	1207K	35	72	17	1.1	15.8	5.1	8500	10000	41.5	65.5	1	0.23	2.71	4.2	2.84	0.323	0.317
1208	1208K	40	80	18	1.1	19.2	6.5	7500	9200	46.5	73.5	1	0.22	2.83	4.38	2.97	0.417	0.411
1209	1209K	45	85	19	1.1	21.8	7.35	7000	8500	51.5	78.5	1	0.21	2.94	4.56	3.09	0.465	0.459
1210	1210K	50	90	20	1.1	22.7	8.1	6500	7900	56.5	83.5	1	0.21	3.07	4.76	3.22	0.525	0.515
1211	1211K	55	100	21	1.5	26.8	10	5800	7100	63	92	1.5	0.2	3.19	4.94	3.34	0.705	0.693
1212	1212K	60	110	22	1.5	30.2	11.5	5200	6400	68	102	1.5	0.19	3.37	5.22	3.53	0.9	0.885
1213	1213K	65	120	23	1.5	31	12.5	4800	5800	73	112	1.5	0.17	3.67	5.68	3.84	1.15	1.13
1214	0	70	125	24	1.5	34.6	13.8	4600	5700	78	117	1.5	0.18	3.48	5.38	3.64	1.26	0
1215	1215K	75	130	25	1.5	38.8	15.7	4300	5300	83	122	1.5	0.17	3.6	5.58	3.77	1.36	1.34
1216	1216K	80	140	26	2	39.8	17	4000	4900	89	131	2	0.16	3.9	6.03	4.08	1.67	1.64
1217	1217K	85	150	28	2	49.2	20.8	3800	4600	94	141	2	0.17	3.61	5.59	3.78	2.07	2.04
1218	1218K	90	160	30	2	56.8	23.4	3500	4300	99	151	2	0.17	3.69	5.7	3.86	2.52	2.48
1219	1219K	95	170	32	2.1	57	24.3	3300	4000	106	159	2	0.17	3.63	5.62	3.8	3.1	3.05
1220	1220K	100	180	34	2.1	69	29.7	3100	3800	111	169	2	0.17	3.62	5.6	3.79	3.7	3.64
1221	0	105	190	36	2.1	77	34	2900	3600	116	179	2	0.18	3.56	5.51	3.73	4.37	0
1222	1222K	110	200	38	2.1	80.2	35.2	2800	3400	121	189	2	0.17	3.64	5.63	3.81	5.15	5.07
126	0	6	19	6	0.3	2.5	0.48	30000	37000	8	17	0.3	0.34	1.86	2.87	1.94	0.009	0
